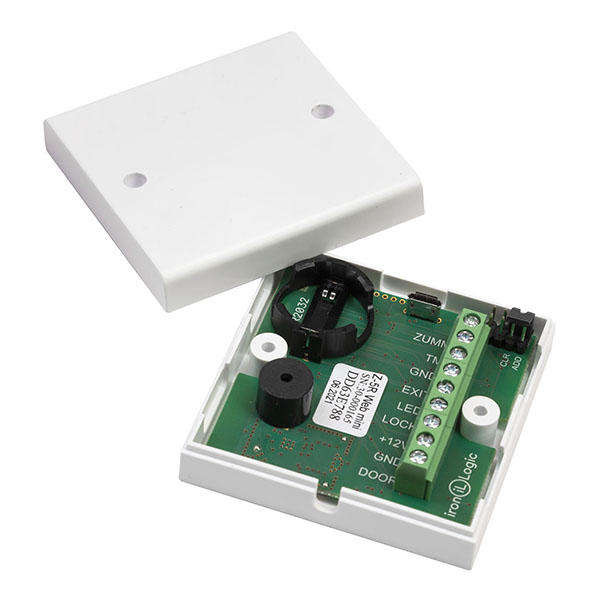

Z-5R Wi-Fi is a network controller designed for use in both online and offline access control systems. It is intended for managing electromagnetic and electromechanical locks, as well as turnstiles (requires two Z-5R Web Mini controllers for turnstile control). The device is easy to install and maintain.

Z-5R Wi-Fi can be connected to a local network via Wi-Fi, integrated into an RS-485 network, or connected directly to a PC via USB. This flexibility allows for the creation of a complete networked access control system with features such as time tracking, event monitoring, and report generation using compatible software solutions.

The controller supports connection of:

two external readers;

a reader and an exit button;

an electromagnetic or electromechanical lock;

an external buzzer;

an external LED;

a door status sensor.

Purpose Lock, Turnstile
Controller type Network
Connection types RS-485, Wi-Fi, Micro USB
RS-485 lines count 1
RS-485 connection speed 19200 Kbps, 57600 Kbps
RS-485 maximum line length (m) 1200
Keys count 2024
Types of recordable keys Normal, Master, Blocking
Events count 2048
External readers protocol iButton (1-Wire), Wiegand-26, Wiegand-34, Wiegand-42, Wiegand-50
Operating modes (basic) Normal, Blocking, Free, Wait
Operating modes (advanced) Accept, Trigger, Evacuation, Anti-Theft, Secure, Gateway
Advanced features Double time zones, Key and PIN code access, 2 keys access
Access point types Door, Gateway, Turnstile, Activator Lock (Gate)
Actuator types Electromagnetic, Electromechanical, Turnstile
Built-in reader No
Built-in reader reading range (cm) 2–4



Additional power output for external readers No
Ethernet protocol TCP, IP, ARP, SSH, ICMP, UDP, DHCP, HTTP
Wi-Fi standard IEEE 802.11b, IEEE 802.11g
Wi-Fi security algorithm WPA/WPA2, WPA-PSK, WPA2-PSK
Wi-Fi connection speed 11 Mbps (802.11b), 54 Mbps (802.11g)
Wi-Fi operating mode Access Point, Client
Wireless output power (dBm / mW) <20dBm (<100mW)
USB connection USB 2.0 Type Micro-A
USB operating mode Host
Full speed High speed
Non-volatile memory (EEPROM) Yes
Voltage 9–24V DC
Current consumption (mA) 100
Electromagnetic lock opening duration (s) 0.1–6,500
Electromechanical lock opening duration (s) 0.1–6,500
MIS transistors count 1
MIS transistors maximum current (A) 5А
Invalid connection protection Yes
Operating temperature (°C) -40…+50
Case material ABS polymer
Dimensions (mm) 64х64х19
Weight (g) 150
