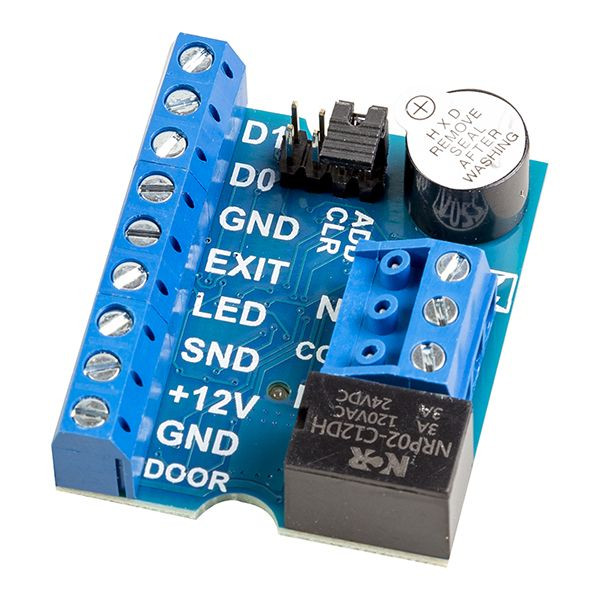

Z-5R Relay Wiegand is the standalone controller designed for management of the lock using relay. Controller dimensions allows to install it inside the lock as a board, as well as separately in the case. Z-5R Relay Wiegand operates with iButton DS1990A keys and RFID cards, keyfobs and wristbands using any reader which supporting iButton (1-Wire) or Wiegand 26...42 protocols.
Z-5R Relay Wiegand

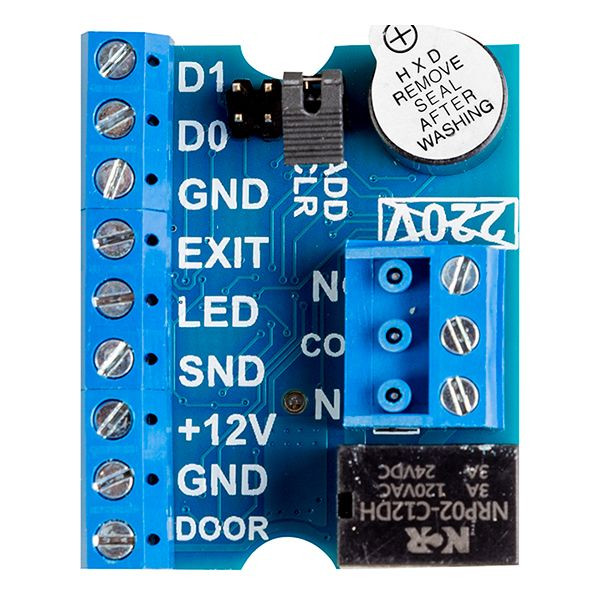

Z-5R Relay Wiegand controller allows to connect the reader, lock opening button, door opening sensor, relay controlled lock, external LED, external buzzer.
| Purpose | Lock |
| Controller type | Standalone |
| Keys count | 1364 |
| Types of recordable keys | Normal, Master, Blocking |
| External readers count | 1 |
| External readers protocol | iButton (1-Wire), Wiegand-26, Wiegand-34, Wiegand-37, Wiegand-40, Wiegand-42 |
| Operating modes (basic) | Normal, Blocking |
| Operating modes (advanced) | Accept, Trigger, Relay |
| Access point types | Door |
| Actuator types | Relay |
| Non-volatile memory (EEPROM) | Yes |
| Controller memory backup and restore using DS1996 key | Yes |
| Controller programming using adapter | Yes |
| Voltage | 12V DC |
| Current consumption (mA) | 45 |
| Bleeper | Buzzer |
| Visual indication | 1 x LED |
| Duration of the power supply to the relay (s) | 0–220 |
| Relay outputs count | 1 |
| Relay outputs maximum current (A) | 3 |
| Control of initial state of relay by jumper selection | Yes |
| Invalid connection protection | Yes |
| Operating temperature (°C) | -30…+40 |
| Case material | ABS polymer, No case |
| Dimensions (mm) | 46х35х15 |
