Z-5R 5000 is the standalone controller designed for management of the electromagnetic and electromechanical locks. Controller dimensions allows to install it inside the lock as a board, as well as separately in the case. Z-5R 5000 operates with iButton DS1990A keys and RFID cards, keyfobs and wristbands.
Z-5R 5000
Z-5R 5000 controller allows to connect the reader, lock opening button, door opening sensor, electromagnetic or electromechanical lock, external LED, external buzzer.
| Purpose | Lock |
| Controller type | Standalone |
| Keys count | 5460 |
| Types of recordable keys | Normal, Master, Blocking |
| External readers count | 1 |
| External readers protocol | iButton (1-Wire) |
| Operating modes (basic) | Normal, Blocking |
| Operating modes (advanced) | Accept, Trigger |
| Access point types | Door |
| Actuator types | Electromagnetic, Electromechanical |
| Non-volatile memory (EEPROM) | Yes |
| Controller memory backup and restore using DS1996 key | No |
| Controller programming using adapter | Yes |
| Voltage | 12V DC |
| Current consumption (mA) | 4 |
| Bleeper | Buzzer |
| Visual indication | 1 x LED |
| Electromagnetic lock opening duration (s) | 0–220 |
| Electromechanical lock opening duration (s) | 0–220 |
| MIS transistors count | 1 |
| MIS transistors maximum current (A) | 5А |
| Invalid connection protection | Yes |
| Operating temperature (°C) | -40…+50 |
| Case material | No case |

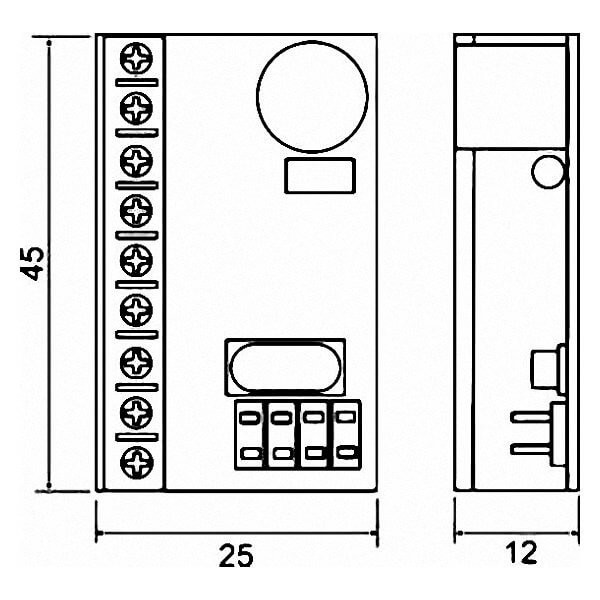

| Dimensions (mm) | 45х25х14 |
