Z-5R

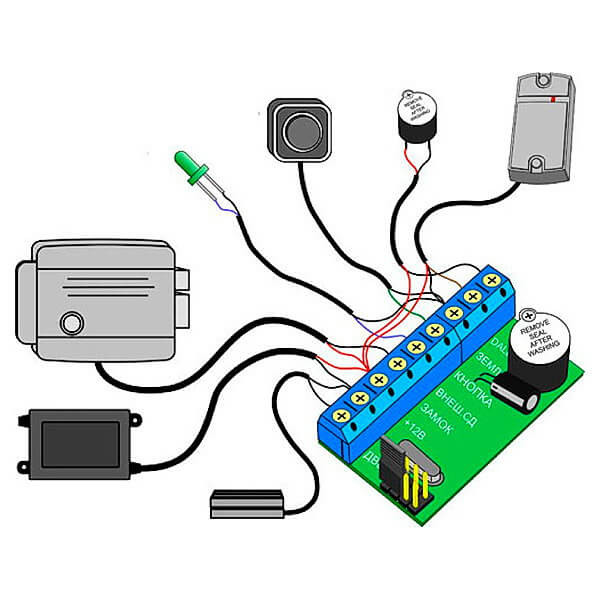

Z-5R controller allows to connect the reader, lock opening button, door opening sensor, electromagnetic or electromechanical lock, external LED, external buzzer.

SKU: Matrix II K-1 Category:

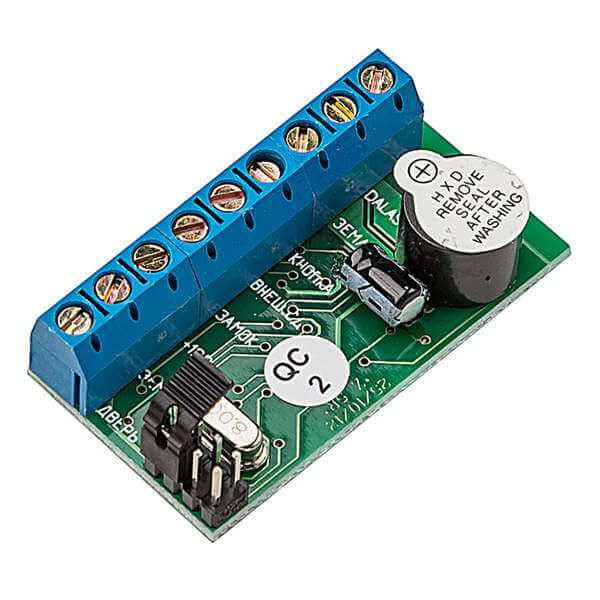

Z-5R is the standalone controller designed for management of the electromagnetic and electromechanical locks. Controller dimensions allows to install it inside the lock as a board, as well as separately in the case. Z-5R operates with iButton DS1990A keys and RFID cards, keyfobs and wristbands.

Purpose Lock
Controller type Standalone
Keys count 1364
Types of recordable keys Normal, Master, Blocking
External readers count 1
External readers protocol iButton (1-Wire)
Operating modes (basic) Normal, Blocking
Operating modes (advanced) Accept, Trigger
Access point types Door
Actuator types Electromagnetic, Electromechanical



Non-volatile memory (EEPROM) Yes
Controller memory backup and restore using DS1996 key Yes
Controller programming using adapter Yes
Voltage 12V DC
Current consumption (mA) 4
Bleeper Buzzer
Visual indication 1 x LED
Electromagnetic lock opening duration (s) 0–220
Electromechanical lock opening duration (s) 0–220
MIS transistors count 1
MIS transistors maximum current (A)
Invalid connection protection Yes
Operating temperature (°C) -40…+50
Case material ABS polymer, No case

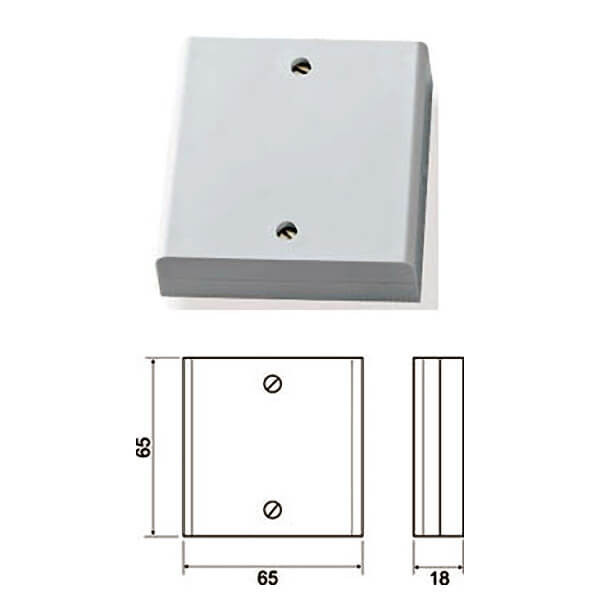

Dimensions (mm) 65х65х18
