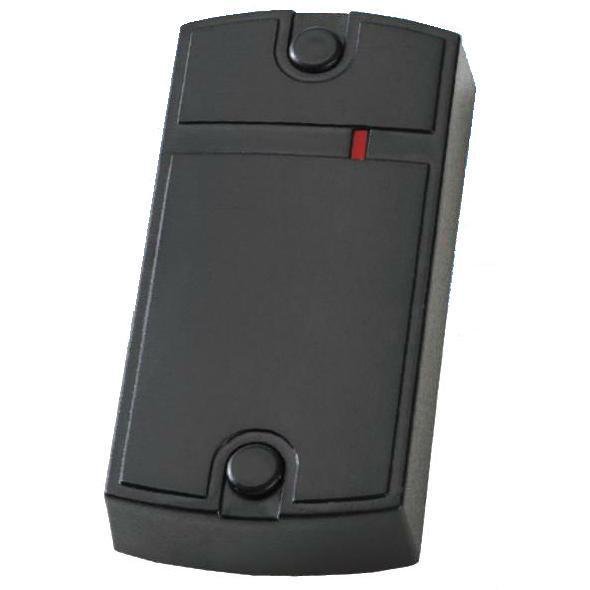

Matrix II EH

SKU: Matrix II EH Category: Tag:

Matrix II EH RFID reader is designed for using in the network and standalone access control systems. Matrix II EH reader supports EM Marine and HID ProxCard II 125KHz keys and connects to the controllers via iButton (1-Wire) or Wiegand-26 protocol. Matrix II EH reader automatically detects keys standard for simultaneous using of EM Marine and HID ProxCard II keys. There is a possibility of external control of visual and sound indication without additional connections.

Purpose ACS reader
Operating frequency 125 KHz
Key types RFID (Proximity)
Reader standard EM Marine, HID ProxCard II
Reader protocol iButton (1-Wire), Wiegand-26
RFID reading range (cm) 2–6
Keypad No
Anti-vandal case No
Waterproof and dustproof case Yes
Keys copying protection No



iButton (1-Wire) maximum line length (m) 15
Wiegand maximum line length (m) 100
Voltage 12 DC
Current consumption (mA) 35
Bleeper Buzzer
Visual indication 1 x 2-colored LED
External control of LEDs and buzzer Yes
Operating temperature (°C) -30…+40
Case material ABS polymer
Dimensions (mm) 85х44х18
